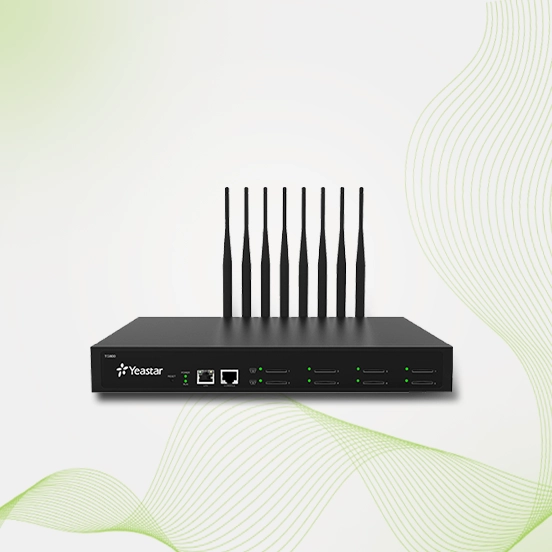

Yeastar TG800 GSM Gateway
Yeastar NeoGate TG800
Yeastar TG800 is a powerful VoIP GSM gateway with eight channels, bridging the gap between GSM networks and IP-based systems. Designed to slash the cost of telephone calls, it can find the cheapest route and use the most economical SIM card. The gateway supports GSM/CDMA/UMTS to VoIP calling, and vice-versa. Set up this gateway with your SIP-based phone system to use your existing mobile provider as a primary or backup solution.
Cost Savings
Save phone bills tremendously with mobile-to-mobile calls, strict Least Cost Routing (LCR), and reduced costs for SOHO and SMB environments.
Reliable Fallback
Works seamlessly as a cost-effective backup when the landline network goes down, and provides a crucial communication link for remote offices.
Easy Integration
High compatibility with major IP PBX and Softswitch brands. Combine seamlessly with Asterisk, MS Lync, Trixbox, Elastix, FreeSWITCH, or 3CX.
Simple Management
Features an intuitive Web-based configuration allowing everything to be easily set up. Manage network, routing, SMS, and security visually.
Yeastar TG800 GSM Gateway in Detail
An incredible range of VoIP and cellular features are supported. Your network remains secure through NAT traversal, OpenVPN, firewall, VLAN, and DDNS. Manage the Yeastar TG800 gateway through an intuitive web-based user interface. The gateway is highly reliable and interoperable, ready for on-premise and hosted IP PBX solutions. TG800 offers more tight integration with GSM Networks with its capability to send and receive SMS Messages. The SMS Center allows complete SMS Management.
TG800 Quick Specs
- Channels: 8x GSM/CDMA/UMTS
- Network Type: 850/900/1800/1900MHz
- Protocol Support: SIP (RFC3261), IAX2
- Transport: UDP, TCP, TLS, SRTP
- Codecs: G.711(a/u), G.722, G.723.1, G.726, G.729a, GSM
- DTMF Mode: RFC2833, SIP INFO, In-band
Networking & Security
- Network Options: DHCP, DDNS, Static IP, QoS, Route, VLAN
- Security & VPN: Firewall, OpenVPN, NAT Traversal
- SIP Support: SIP Trunk, SIP Registrar, SIP Peer Mode
- IP Controls: IP Blacklist, White List, Network Attack Alert
- API: Real Open API Protocol (Asterisk based)
- Reporting: System Logs, CDR, Packet Capture
TG800 Gateway Features
- 1 Stage / 2 Stage Dial
- Balance Alarm
- Call Back & Call Transfer
- Call Detail Record (CDR)
- Call Duration Limitation
- Call Progress Tone Generation
- Call Status Display
- Call Waiting
- Caller ID / CLIR
- Carrier Selection: Auto/Manual
- Configure Backup / Restore
- Firmware Upgrade (HTTP/TFTP)
- Gain Adjustment
- GSM/CDMA/UMTS Ports Group Manage
- Hotline
- Incoming / Outgoing Routing Rules
- IP Blacklist
- Network Attack Alert
- NTP Support
- Open API for SMS and USSD
- Packet Capture
