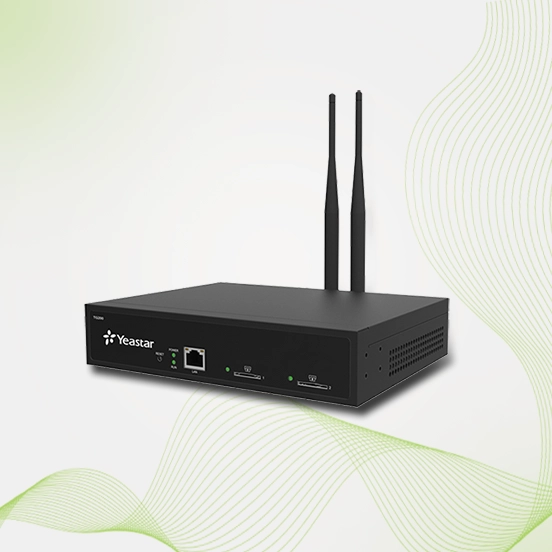

Yeastar TG200 GSM Gateway
Yeastar NeoGate TG200
The Yeastar TG200 gateway supports two channels of GSM/CDMA/UMTS connectivity. Deploy the gateway for VoIP to mobile, or mobile to VoIP communications. Features like VoIP/SIP calling and SMS are supported across numerous mobile carriers. The gateway is the ideal solution for leveraging your existing mobile network with your VoIP phone system, either as a primary or backup solution for business communications.
Cost Savings
Save phone bills tremendously with mobile-to-mobile calls, strict Least Cost Routing (LCR), and reduced costs for SOHO and SMB environments.
Reliable Fallback
Works seamlessly as a cost-effective backup when the landline network goes down, and provides a crucial communication link for remote offices.
Easy Integration
High compatibility with major IP PBX and Softswitch brands. Combine seamlessly with Asterisk, MS Lync, Trixbox, Elastix, FreeSWITCH, or 3CX.
Simple Management
Features an intuitive Web-based configuration allowing everything to be easily set up. Manage network, routing, SMS, and security visually.
Yeastar TG200 GSM Gateway in Detail
The Yeastar TG200 is a GSM/CDMA/UMTS gateway that allows businesses to connect their VoIP Telephone System to GSM/CDMA/UMTS networks. The TG200 provides advanced hardware and software architecture and a robust set of features. Security features include a firewall, NAT traversal, DDNS, VPN, and VLAN. It can be used as a sophisticated fallback solution or as a great tool for enterprises to manage customer relations with its SMS solutions.
TG200 Quick Specs
- Channels: 2x GSM/CDMA/UMTS
- Network Type: 850/900/1800/1900MHz
- Protocol Support: SIP (RFC3261), IAX2
- Transport: UDP, TCP, TLS, SRTP
- Codecs: G.711(a/u), G.722, G.726, G.729A, GSM, Speex
- DTMF Mode: RFC2833, SIP INFO, In-band
Networking & Security
- Network Options: DHCP, DDNS, Static IP, QoS, Route, VLAN
- Security & VPN: Firewall, OpenVPN, NAT Traversal
- SIP Support: SIP Trunk, SIP Registrar, SIP Peer Mode
- Calling Type: Termination (VoIP to GSM), Origination
- API: Real Open API Protocol (Asterisk based)
- Reporting: System Logs, CDR, Packet Capture
Features & Compatibility
- Protocol: SIP (RFC3261)
- Transport: UDP
- DTMF: RFC2833, SIP INFO, In-band
- Codec: G.711 A/u-law, G.726, G.729 A, GSM, Speex
- LAN: 1 (10/100MBps)
- Network: DHCP, VLAN, Firewall
- Power: AC 100~240V (DC 12V, 1A)
- Size: 175x125x31mm
- Compatible with Asterisk
- Compatible with MS Lync
- Compatible with Trixbox
- Compatible with Elastix
- Compatible with FreeSWITCH
- Compatible with 3CX
