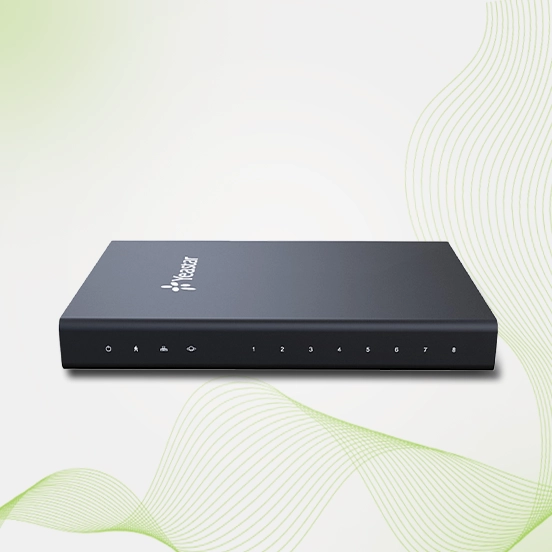

Yeastar TA800 FXS Gateway
Yeastar Neogate TA800
The YeastarNeoGate TA800 gateway features eight FXS ports. Connect your legacy equipment, including analog phones and fax machines, to this gateway. It allows your existing equipment to operate in a VoIP environment. The gateway supports call handling features like call waiting, do not disturb, hunting group, local three-way conferencing, caller ID and speed dialing. Operate the gateway with environments such as 3CX, Asterisk, and Skype for Business.
High Performance
Stand-alone FXS VoIP gateway with carrier-grade features and reliability. 8 FXS ports fully compliant with SIP and IAX2. Superb voice compression and line echo cancellation.
Flexible Installation
Featuring a book-like design, NeoGate TA800 is elegant in appearance and flexible in installation. Place it on the table or mount it on the wall to save space and add convenience.
Simple Management
Easy-to-use Web interface allows straightforward configuration. LED indicators present system visually alongside user-friendly Web GUI, and comprehensive logs.
Green & Quiet
With a fanless design and a compact form factor, the TA800 is very quiet. Low power consumption makes it a green and cost-effective product.
NeoGate TA800 in Detail
Wall mounts the YeastarNeoGate TA800 gateway or set it up at your desk. It features a compact design and a quiet operation. A firewall, attack alert services, DDNS, VLAN and Nat traversal, are built into the gateway to protect your data and communications. Call quality is improved through echo cancellation and dynamic jitter buffer. Featuring 8 FXS ports for analog phones, it is designed to meet various demands of IP applications. The powerful features and robust performance simplify the integration of legacy phone system and IP-based system.
TA800 Quick Specs
- Connections: 8x RJ11 FXS
- Switch Port: 1x 10/100Base-T Ethernet
- Protocol Support: SIP, IAX2
- Audio Codecs: G.711a/u-law, G.722, G.723, G.726, G.729A, GSM
- Fax Codecs: T.38 & pass-through
- Management: via web UI
Physical Details
- Dimensions: 7.87” x 5.39” x 0.98”
- Mounting: Desktop, wall
- Echo Cancellation: Yes (8, 16, 32, 64, 128 ms echo delays)
- QoS: Supported
- Interoperability: Tested with Elastix, BroadSoft, & others
Gateway Features & Functions
- Fully compliant with SIP and IAX2
- Flexible calling rules
- Reliable fax performance with T.38
- Provides high-quality voice compression with industry-standard codecs
- Line echo cancellation for 32, 64 or 128 ms echo delays
- Web-based GUI for easy configuration and management
- Excellent interoperability with a wide range of legacy and IP equipment
