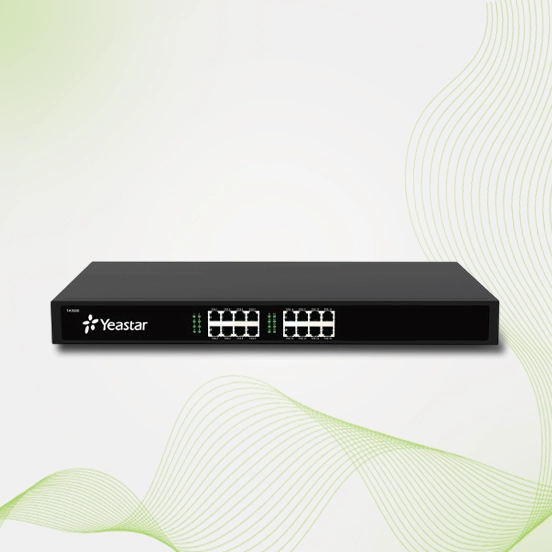

Yeastar ta1600 FXS Gateway
Yeastar Neogate TA1600
The YeastarNeoGate TA1600 is a multi-port FXS gateway including 16 FXS ports, line echo cancellation and is compatible with both SIP and IAX2. The TA1600 is ideal for small and medium enterprises that wish to integrate a traditional phone system into an IP-based system.
High Performance
16 FXS ports compliant with SIP and IAX2, offering superb voice compression and line echo cancellation.
Simple Management
Easy-to-use user-friendly Web GUI, LED indicators, and comprehensive logs for straightforward configuration.
Automatic Provisioning
Supports PnP or DHCP provisioning by MyPBX, standard open protocol TR-069, and SNMP for easy network management.
Green with Small Footprint
1U form factor with low power consumption makes it an environmentally friendly choice that minimizes power expenses.
Built-In Firewall & Security
The Yeastar TA1600 provides flawless and safe communication with a built-in firewall. Malicious data is blocked to ensure robust VoIP phone calls. It also supports VLANs, VPN tunnels, and Quality of Service (QoS) to prioritize critical bandwidth.
TA1600 Quick Specs
- Connections: 16x RJ11 FXS, 1x RJ21 FXS
- Switch Port: 1x 10/100Base-T Ethernet
- Protocol Support: SIP, IAX2
- Audio Codecs: G.711a/u-law, G.722, G.726, GSM
- Echo Cancellation: Yes (8, 16, 32, 64, 128 ms)
- Management: Via user-friendly Web GUI
Physical & Package
- Dimensions: 17.32” x 9.84” x 1.73”
- Mounting: Desktop, Rack-mountable (1U)
- Device & Wiring: Power cord & Network cable
- Mounting Kit: 2x mounting ears, 8x screws
- Accessories: Grounding stud, nut, 4x rubber feet
Extensive Gateway Functionalities
- 3-Way Group Call
- Call Hold & Waiting
- Custom Waiting Music
- SIP Trunking Gateway
- VLAN & VPN Tunnels
- Quality of Service (QoS)
- TR-069 Mass Deployment
- Lync Server Integration
- Blacklisting & Alerts
