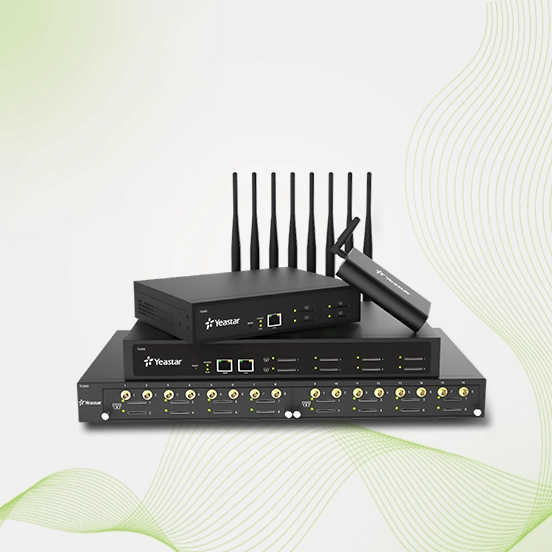

Yeastar TG1600 GSM Gateway
Yeastar NeoGate TG1600
Yeastar introduces the new VoIP GSM model NeoGate TG1600. Featuring 16 GSM channels, the 1U rack-mountable NeoGate TG1600 greatly benefits enterprises and service providers with flexible call routing, toll-quality voice, high performance, and reliability. It supports two-way communication: VoIP to GSM and GSM to VoIP. Thus the call costs could be significantly reduced by VoIP or GSM networks.
Cost Effective
Rich functionalities with a robust feature set that fulfills your various needs and drastically cuts communication costs.
Easy Management
Simple and intuitive Web-based configuration saves you loads of time and prevents tedious networking tasks.
Excellent Interoperability
Interoperable with a broad list of Softswitches, PBX, and IP-PBXs like Elastix and Microsoft Lync Server.
Reliable Performance
Highly stable operating metrics equipped with advanced hardware architecture and toll-quality voice routing.
Yeastar TG1600 GSM Gateway in Detail
Designed for cost-effective deployment of VoIP and GSM services, NeoGate TG1600 makes a perfect GSM connectivity solution, enabling enterprises to make calls to the mobile numbers of customers and service providers to offer call termination services. NeoGate TG1600 provides advanced remote connectivity with OpenVPN, NAT traversal, firewall, VLAN, and DDNS. It also features optional antenna splitters to seamlessly combine 16 channels into 4 GSM antennas.
TG1600 Quick Specs
- Channels: 16x GSM/CDMA/UMTS
- Network Type: 850/900/1800/1900MHz
- Protocol Support: SIP, IAX2
- Transport: UDP, TCP, TLS, SRTP
- Codecs: G.711(a/u), G.722, G.726, G.729A, GSM, ADPCM, Speex
- DTMF Mode: RFC2833, SIP INFO, In-band
Networking & Security
- Network Options: DHCP, DDNS, Static IP, QoS, Route, VLAN
- Security & VPN: Firewall, OpenVPN, NAT Traversal
- Calling Type: Termination (VoIP to GSM), Origination
- Network Protocol: FTP, TFTP, HTTP, HTTPS, SSH
- LAN: 1 x 10/100Base-T Ethernet
- Console Port: 1
TG1600 Highlighted Features
- 16 GSM/CDMA Channels
- GSM Frequency: 850/900/1800/1900 MHz
- CDMA Frequency: 800 MHz
- Protocol: SIP, IAX2
- Web-based configuration saves your time
- Rich functionalities cut communication costs
- Codecs: G.711(a/u), G.722, G.726, G.729A, GSM, Speex
- Reliable performance & advanced architecture
- Interoperable with Softswitch, PBX, Elastix & Lync
- See TG1600 datasheet for full spec and detail
